ST4.2
GOSHEN

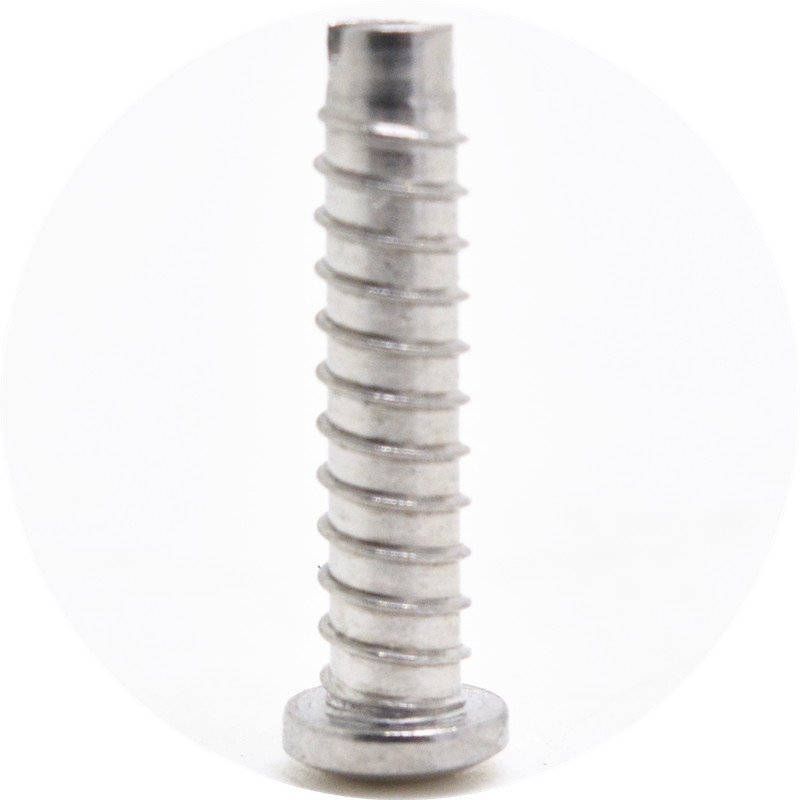

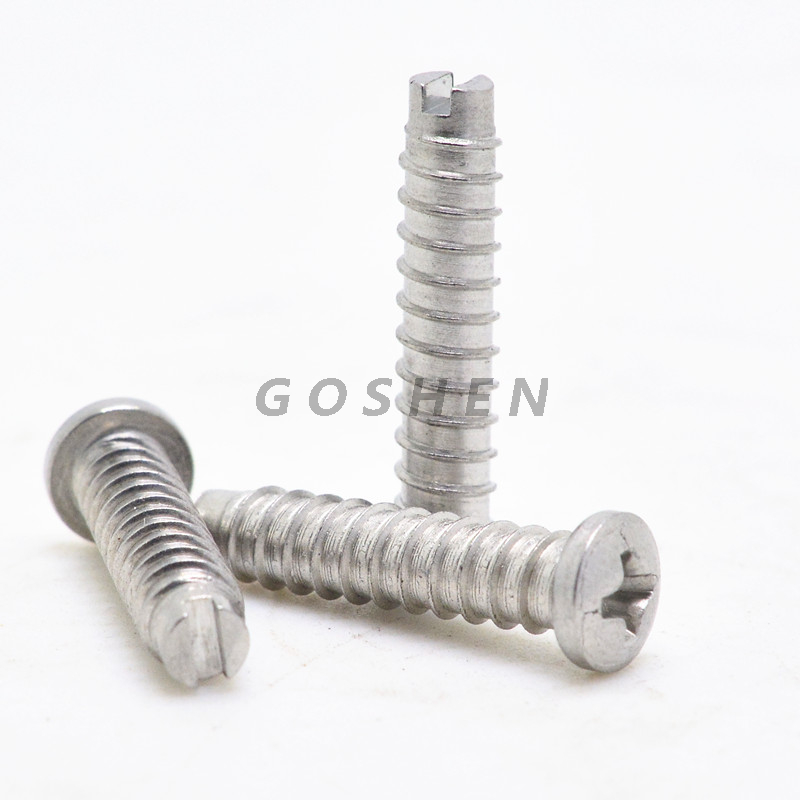

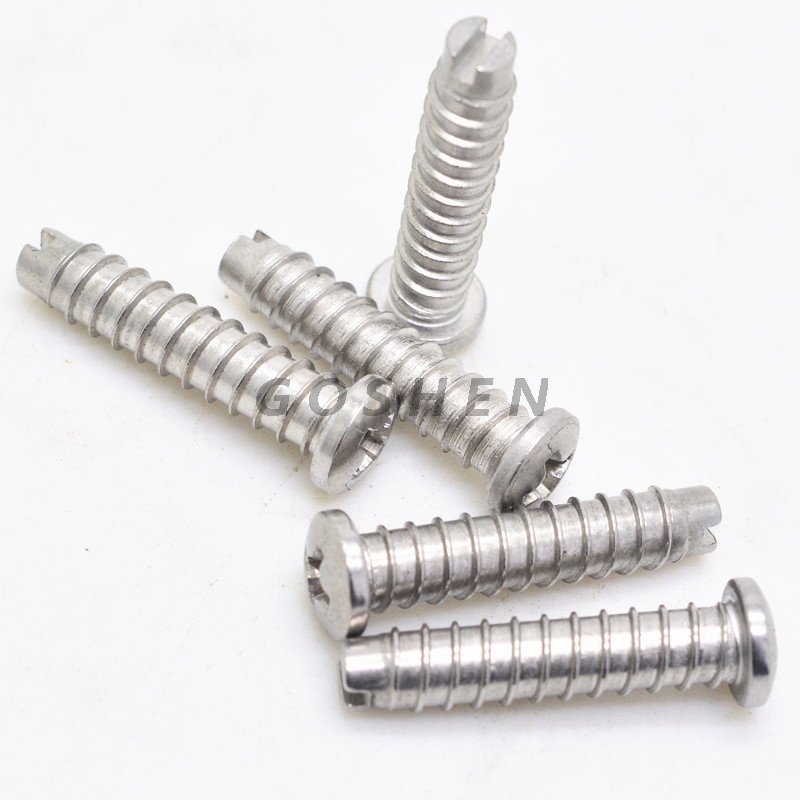

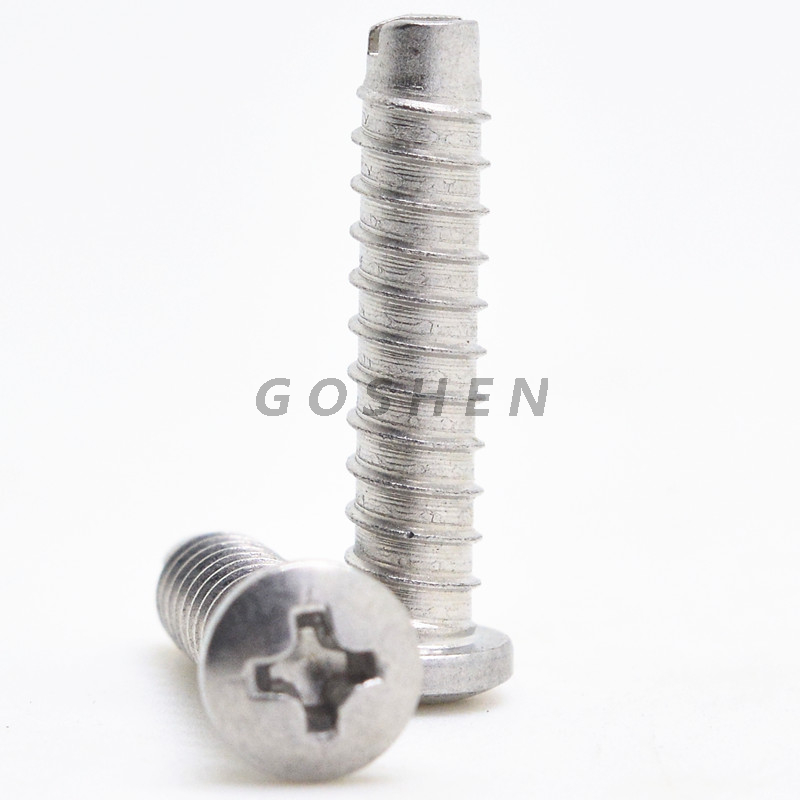

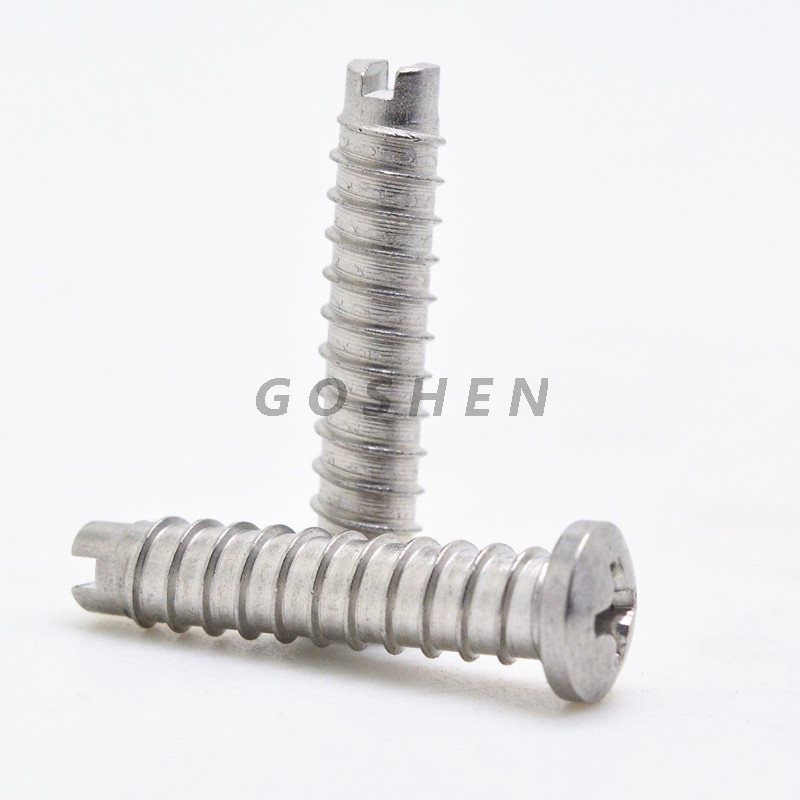

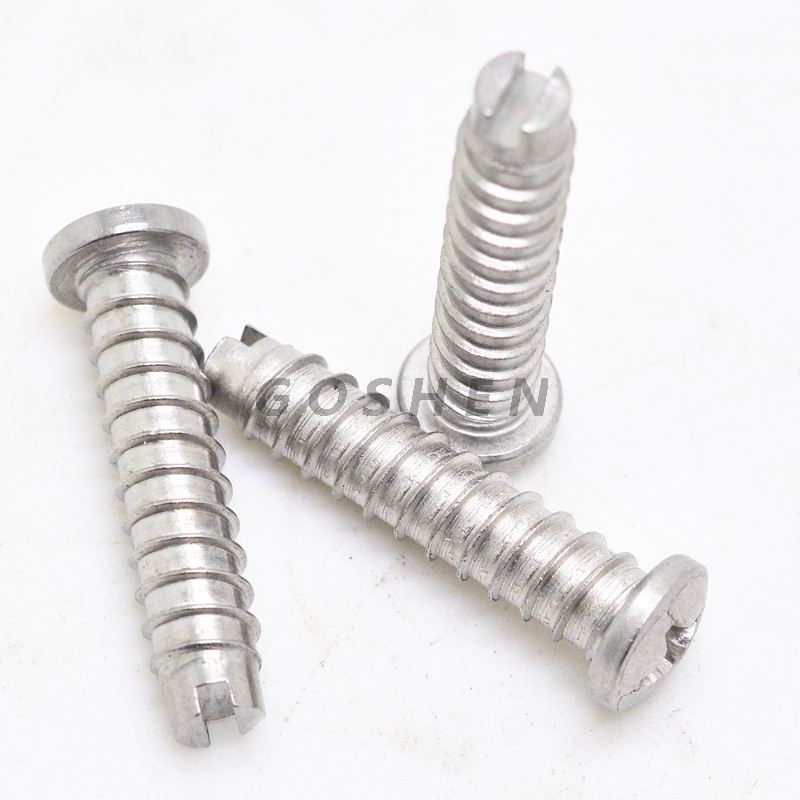

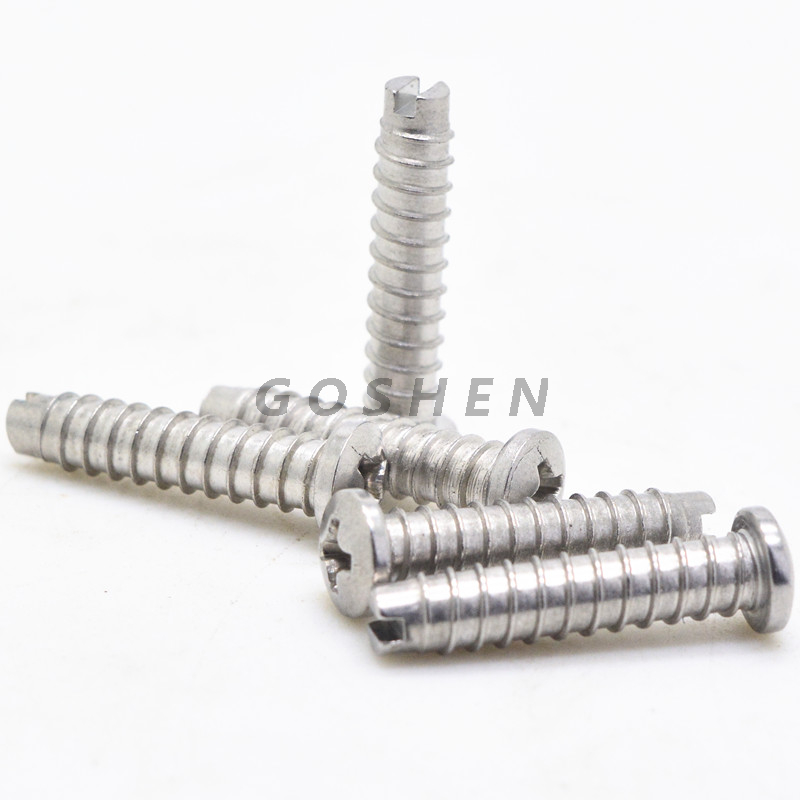

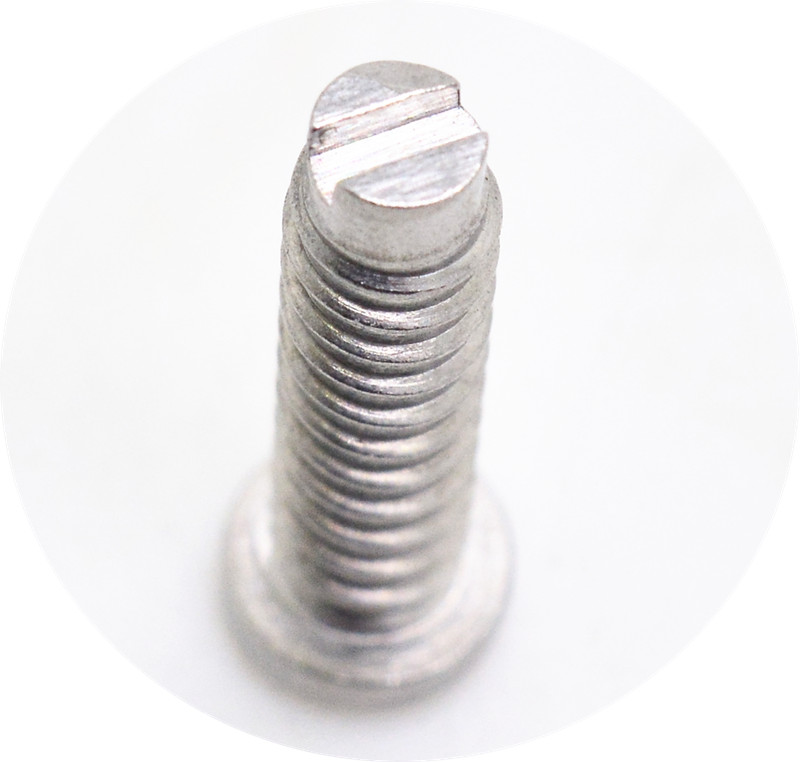

Stainless Steel PHILLPS Head Slotted End Self Tapping Screw
Product Name | Stainless Steel Phillps Head Slotted Hexagon Bolt |
Material | Stainless steel |
Head Type | Pan head |
Drive Type | Phillps |
OEM | YES |
Size | Standard,Non-standard,According To Drawing Or Samples |
Surface Treatment | As requirement,Zinc plated, Nickel Plated,anodize |
Feature | 1.Corrosion resistant |
Standard Available | GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN |
Material Available | Stainless Steel Titanium and Titanium Alloy Carbon Steel Aluminum OEM according to your request |
Packing | PE/PP Bag + box, or as per client's requirement |
Material
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200HB |
Stainless Steel PHILLPS Head Slotted End Self Tapping Screw
Product Name | Stainless Steel Phillps Head Slotted Hexagon Bolt |
Material | Stainless steel |
Head Type | Pan head |
Drive Type | Phillps |
OEM | YES |
Size | Standard,Non-standard,According To Drawing Or Samples |
Surface Treatment | As requirement,Zinc plated, Nickel Plated,anodize |
Feature | 1.Corrosion resistant |
Standard Available | GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN |
Material Available | Stainless Steel Titanium and Titanium Alloy Carbon Steel Aluminum OEM according to your request |
Packing | PE/PP Bag + box, or as per client's requirement |
Material
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200HB |
