| Quantity: | |
|---|---|
M10*50MM
GOSHEN

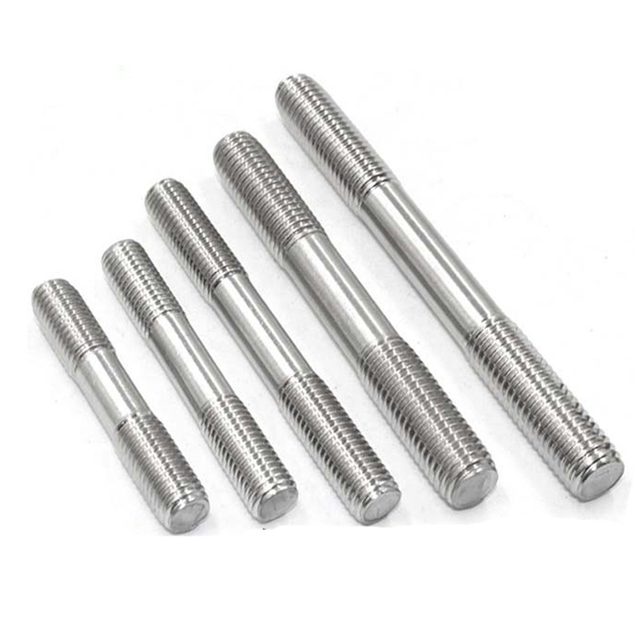

Duplex Stainless Steel 2205 Double Thread Head Bolt M10*50MM
Product Name | Duplex Stainless Steel 2205 Double Thread Head Bolt M10*50MM |
Material | Stainless Steel 304/316/316L A2/A4 |
OEM/Custom | YES |
Feature | 1.Corrosion resistant 2.Excellent life cycle 3.Environmentally friendly 4.High-Performance Fastening |
Standard Available | GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN |
Material Available | Stainless Steel Titanium and Titanium Alloy Aluminum |
Packing | Box+Carton +Pallet or as per client's requirement |
Material
| SS2205 Chemical Composition(%) | |||||||||
| Grade | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo | N |
| 0.030 | 2.0 | 0.03 | 0.02 | 1.0 | 4.5-6.5 | 21-23 | 2.5-3.5 | 0.08-0.2 | |
| 2205 Mechanical property | |||
| σb≥ | σb≥ | δ≥ | HB[N(kgf/mm2)] |
| 795(Mpa) | 550(Mpa) | 15% | ≤310（HB） |
Duplex Stainless Steel 2205 Double Thread Head Bolt M10*50MM
Product Name | Duplex Stainless Steel 2205 Double Thread Head Bolt M10*50MM |
Material | Stainless Steel 304/316/316L A2/A4 |
OEM/Custom | YES |
Feature | 1.Corrosion resistant 2.Excellent life cycle 3.Environmentally friendly 4.High-Performance Fastening |
Standard Available | GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN |
Material Available | Stainless Steel Titanium and Titanium Alloy Aluminum |
Packing | Box+Carton +Pallet or as per client's requirement |
Material
| SS2205 Chemical Composition(%) | |||||||||
| Grade | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo | N |
| 0.030 | 2.0 | 0.03 | 0.02 | 1.0 | 4.5-6.5 | 21-23 | 2.5-3.5 | 0.08-0.2 | |
| 2205 Mechanical property | |||
| σb≥ | σb≥ | δ≥ | HB[N(kgf/mm2)] |
| 795(Mpa) | 550(Mpa) | 15% | ≤310（HB） |
