Wood screws are a broad category, though, and you’ll find different types that offer a wide range of heads, drives, gauges, lengths, etc. Most all wood screws feature an aggressive heading that is ideal for really holding attachments, but you’ll have to choose the best type of wood screw to get the job done for you.

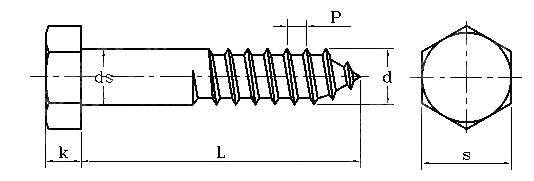

| d | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| ds | max | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| min | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
| k | max | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 |
| min | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 | |
| s | max | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 |
| min | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | |
| d | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| L | kg | |||||||||
| 16 | 1.71 | 2.92 | ||||||||
| 20 | 2.01 | 3.42 | 5.02 | |||||||
| 25 | 2.41 | 4.02 | 5.82 | 11.5 | ||||||
| 30 | 2.81 | 4.62 | 6.62 | 12.9 | 23.6 | |||||
| 35 | 3.11 | 5.12 | 7.42 | 14.2 | 25.8 | 36.2 | ||||
| 40 | 3.51 | 5.82 | 8.22 | 15.6 | 28 | 39.2 | ||||
| 45 | 6.43 | 8.94 | 16.9 | 30 | 42.1 | |||||
| 50 | 7.03 | 9.64 | 18.2 | 32.1 | 45.4 | 84.1 | ||||
| 55 | 10.5 | 19.6 | 34.3 | 48.6 | 89.7 | |||||
| 60 | 11.2 | 20.9 | 36.5 | 51.8 | 94.9 | 165 | ||||
| 65 | 22.2 | 38.5 | 54.7 | 99.5 | 174 | |||||
| 70 | 23.6 | 40.7 | 57.8 | 107 | 182 | |||||
| 75 | 25 | 42.9 | 61 | 112 | 192 | |||||
| 80 | 26.5 | 45.2 | 64.5 | 118 | 201 | |||||
| 90 | 29.4 | 19.9 | 71 | 130 | 220 | |||||
| 100 | 32 | 54 | 77.1 | 141 | 238 | |||||
| 110 | 83.4 | 152 | 253 | |||||||
| 120 | 89.5 | 163 | 275 | |||||||
| 130 | 175 | 293 | ||||||||
| 140 | 187 | 317 | ||||||||
| 150 | 198 | 328 | ||||||||
| 160 | 209 | 348 | ||||||||
| 170 | 366 | |||||||||
| 180 | 385 | |||||||||
| 190 | 404 | |||||||||
| 200 | 421 | |||||||||
