GSMS001

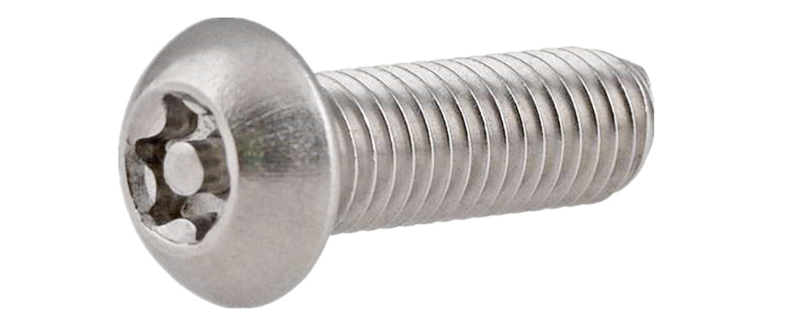

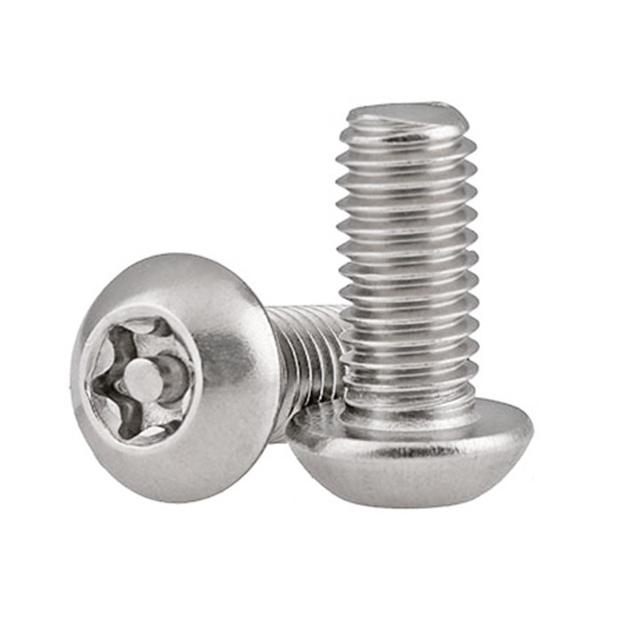

Torx Pan Head Security Machine Screw
Goshen's machine screws are made of 304 316 stainless steel, which has a bright color, less corrosion and a lot of size.Secondly,hex bolt full thread dimensions is also complete.

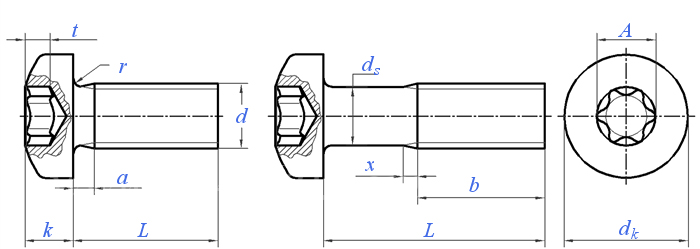

Specification
| Thread size | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | ||
| d | |||||||||||
| P | Screw pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | |
| a | Max | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 | |
| dk | Max=Nominal | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 | |
| Min | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | ||
| k | Max=Nominal | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 | |
| Min | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | ||
| r | Min | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | |
| x | Max | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 | |
| Slot number | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 45 | 50 | ||
| A | Refer to | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 | |
| t | Max | 0.77 | 1.04 | 1.27 | 1.33 | 1.66 | 1.91 | 2.42 | 3.18 | 4.02 | |
| Min | 0.63 | 0.91 | 1.01 | 1.07 | 1.27 | 1.52 | 2.02 | 2.79 | 3.62 | ||
Material
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200HB |
Standard export packing or According to customer's requirement
1. What is your main products?
A: Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self-tapping
Screws, self-drilling screws, stainless steel plate, etc.
2. What is your delivery time?
A: It depends on if we have stock or not, if we have stock goods, we can
delivery within 2 days after receive the payment. And normally our production
is in 20-30 days for one container (20-26 ton) products.
3. What is your payment term?
A: Mostly we use 30% advance payment by T/T, 70% before shipment
For small amount order, we have PayPal account, also the western union,
MoneyGram is ok.
4. How is your quality? And what if we don't satisfied your quality?
A: We produce your order strictly by your request. If the quality was not
acceptable, we will refund to you.
Torx Pan Head Security Machine Screw
Goshen's machine screws are made of 304 316 stainless steel, which has a bright color, less corrosion and a lot of size.Secondly,hex bolt full thread dimensions is also complete.
Specification
| Thread size | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | ||
| d | |||||||||||
| P | Screw pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | |
| a | Max | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 | |
| dk | Max=Nominal | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 | |
| Min | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | ||
| k | Max=Nominal | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 | |
| Min | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | ||
| r | Min | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | |
| x | Max | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 | |
| Slot number | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 45 | 50 | ||
| A | Refer to | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 | |
| t | Max | 0.77 | 1.04 | 1.27 | 1.33 | 1.66 | 1.91 | 2.42 | 3.18 | 4.02 | |
| Min | 0.63 | 0.91 | 1.01 | 1.07 | 1.27 | 1.52 | 2.02 | 2.79 | 3.62 | ||
Material
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200HB |
Standard export packing or According to customer's requirement
1. What is your main products?
A: Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self-tapping
Screws, self-drilling screws, stainless steel plate, etc.
2. What is your delivery time?
A: It depends on if we have stock or not, if we have stock goods, we can
delivery within 2 days after receive the payment. And normally our production
is in 20-30 days for one container (20-26 ton) products.
3. What is your payment term?
A: Mostly we use 30% advance payment by T/T, 70% before shipment
For small amount order, we have PayPal account, also the western union,
MoneyGram is ok.
4. How is your quality? And what if we don't satisfied your quality?
A: We produce your order strictly by your request. If the quality was not
acceptable, we will refund to you.
