Stainless Steel 304 316L 5*141 Double Thread Bearing

Goshen'sbearing are made of 304/316 stainless steel, which has a bright color, less corrosion and a lot of size.
Availability:
  • GS

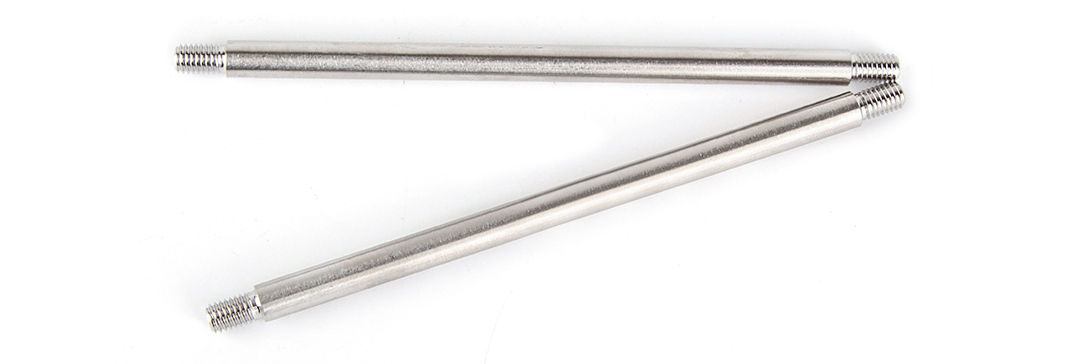

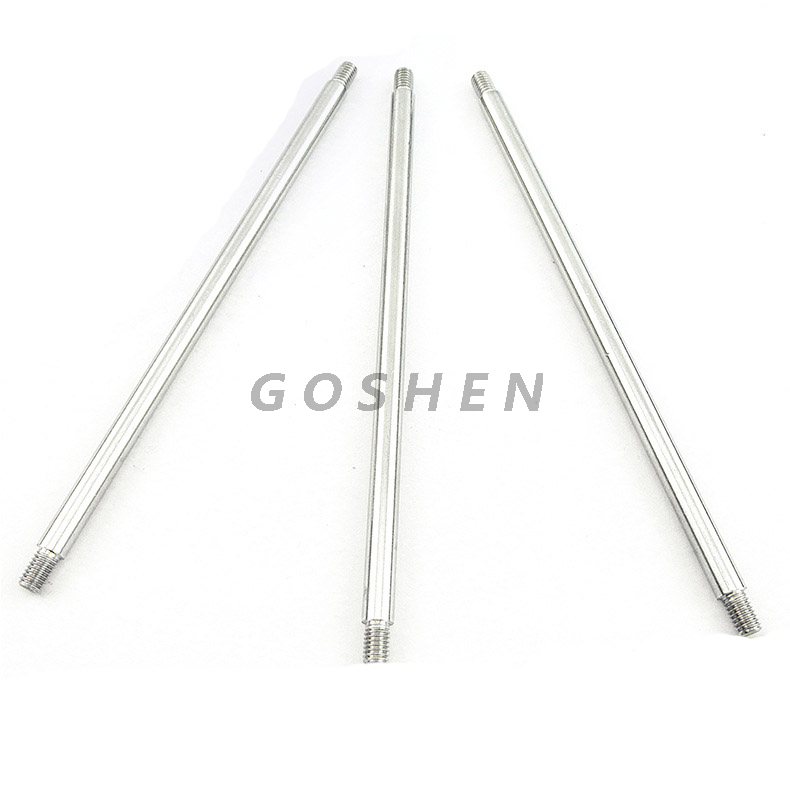

Stainless Steel 304 316L 5*141 Double Thread Bearing

QQ截图20230710103532

Product Name

Stainless Steel 304 316L 5*141 Double Thread Bearing

Material

Stainless Steel 304/316/316L A2/A4

OEM/Custom

YES

Feature

1.Corrosion resistant

2.Excellent life cycle

3.Environmentally friendly

4.High-Performance Fastening

Standard Available

GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN

Material Available

Stainless Steel

Titanium and Titanium Alloy

Aluminum

Packing

Box+Carton +Pallet or as per client's requirement



Material


304 Chemical Composition(%)
Grade C≤ Mn≤ Si≤ S≤ P≤ Cr Ni N≤

0.08 2 0.75 0.03 0.045 18.0-20.0 8.0-10.5 0.1
304 Mechanical property
σb≥ σ0.2≥ δ5 (%)≥ Hardness(HB)(kgf/mm2)]
520(Mpa) 205(Mpa) 40% ≤187 HRB≤90 HV ≤200HB
316 Chemical Composition(%)
Grade C≤ Mn≤ Si≤ S≤ P≤ Cr Ni Cu MO N

0.017 0.98 0.25 0.0016 0.0414 16.23 10.08 0.32 2.06 0.037
316 Mechanical property
σb≥ σ0.2≥ δ5 (%)≥ Hardness(HB)(kgf/mm2)]
520(Mpa) 205(Mpa) 40% ≤187 HRB≤90 HV ≤200
