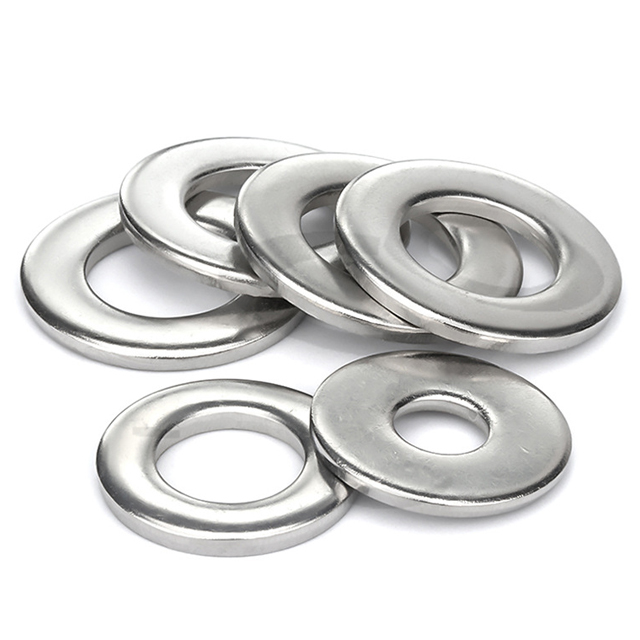

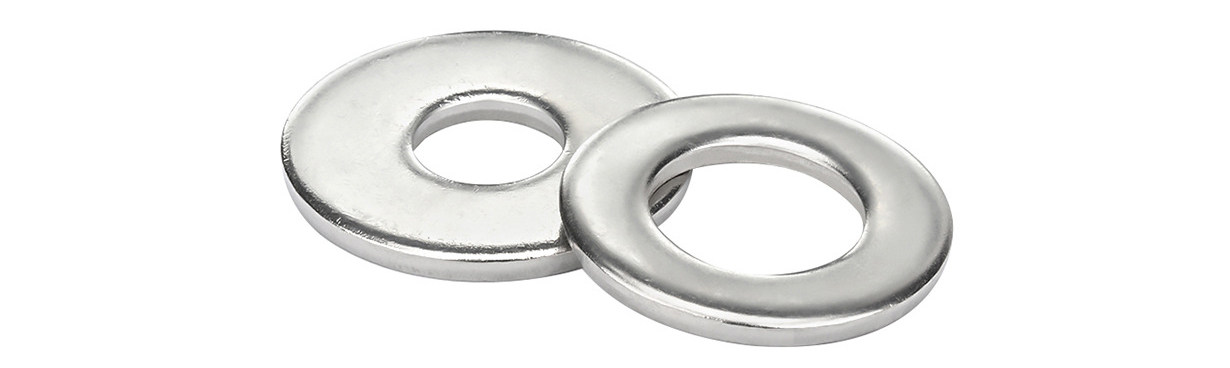

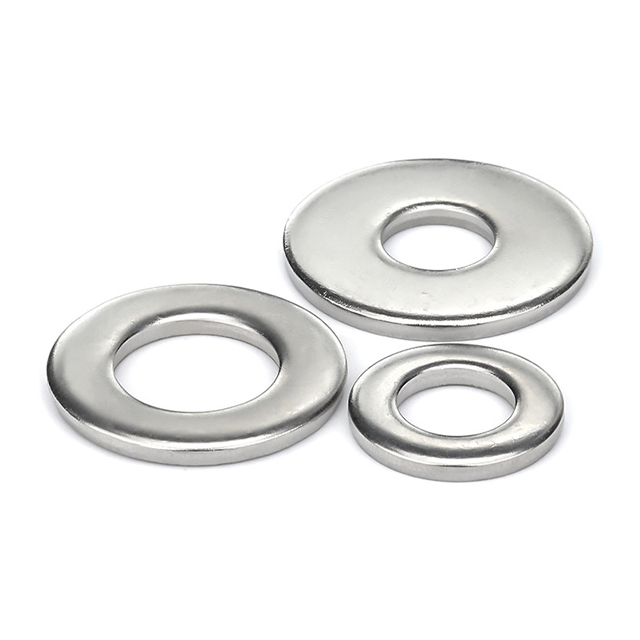

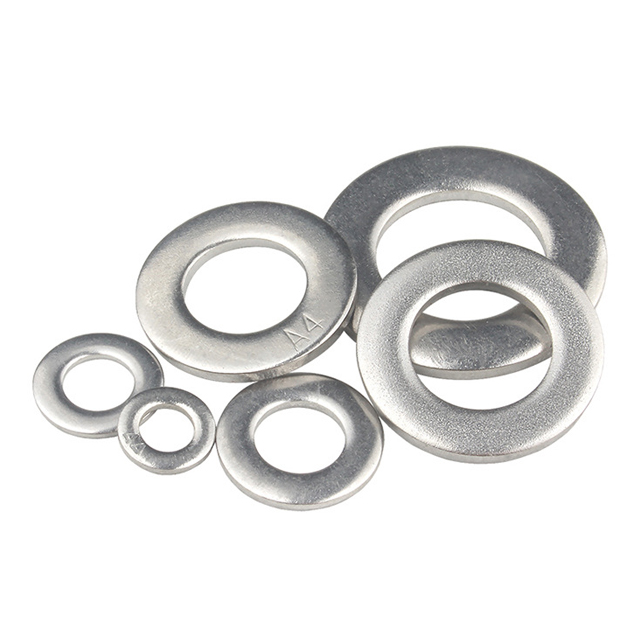

SS316 DIN125 Plain Washer

Material: Brass
Standard: DIN125
Size: M3-M64
We have many size DIN127 Spring washer in stock, wait your inquiry.
Availability:
Quantity:
Inquire Add to Basket

  • DIN125

  • Goshen

Plain Washer


DIN125 Plain washer is mainly used when bolts or screws are connected to other workpieces (or nuts) to provide a certain anti-loosening effect.


未标题-3

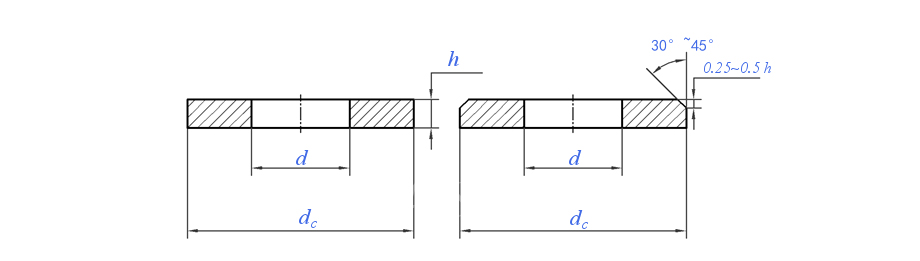

Specification

未标题-1

Specification Φ1.7 Φ1.8 Φ2.2 Φ2.5 Φ2.7 Φ2.8 Φ3.2 Φ3.7 Φ4.3 Φ5.3 Φ6.4 Φ7.4 Φ8.4 Φ10.5 Φ13 Φ15
M Corresponding bolt specification M1.6 M1.7 M2 M2.3 M2.5 M2.6 M3 M3.5 M4 M5 M6 M7 M8 M10 M12 M14
d Min = Nominal 1.7 1.8 2.2 2.5 2.7 2.8 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15
Max 1.84 1.94 2.34 2.64 2.84 2.94 3.38 3.88 4.48 5.48 6.62 7.62 8.62 10.77 13.27 15.27
dc Max = Nominal 4 4.5 5 6 6 7 7 8 9 10 12 14 16 20 24 28
Min 3.7 4.2 4.7 5.7 5.7 6.64 6.64 7.64 8.64 9.64 11.57 13.57 15.57 19.48 23.48 27.48
h Nominal 0.3 0.3 0.3 0.5 0.5 0.5 0.5 0.5 0.8 1 1.6 1.6 1.6 2 2.5 2.5
Max 0.35 0.35 0.35 0.55 0.55 0.55 0.55 0.55 0.9 1.1 1.8 1.8 1.8 2.2 2.7 2.7
Min 0.25 0.25 0.25 0.45 0.45 0.45 0.45 0.45 0.7 0.9 1.4 1.4 1.4 1.8 2.3 2.3
Thousand pieces of weight (steel)≈kg 0.024 0.031 0.037 0.092 0.088 0.127 0.119 0.155 0.308 0.443 1.02 1.39 1.83 3.57 6.27 8.62
Specification Φ17 Φ19 Φ21 Φ23 Φ25 Φ27 Φ28 Φ29 Φ31 Φ33 Φ34 Φ36 Φ37 Φ39 Φ40 Φ41
M Corresponding bolt specification M16 M18 M20 M22 M24 M26 M27 M28 M30 M32 M33 M35 M36 M38 M39 M40
d Min = Nominal 17 19 21 23 25 27 28 29 31 33 34 36 37 39 40 41
Max 17.27 19.33 21.33 23.33 25.33 27.33 28.33 29.33 31.39 33.62 34.62 36.62 37.62 39.62 40.62 41.62
dc Max = Nominal 30 34 37 39 44 50 50 50 56 60 60 66 66 72 72 72
Min 29.48 33.38 36.38 38.38 43.38 49.38 49.38 49.38 55.26 58.8 58.8 64.8 64.8 70.8 70.8 70.8
h Nominal 3 3 3 3 4 4 4 4 4 5 5 5 5 6 6 6
Max 3.3 3.3 3.3 3.3 4.3 4.3 4.3 4.3 4.3 5.6 5.6 5.6 5.6 6.6 6.6 6.6
Min 2.7 2.7 2.7 2.7 3.7 3.7 3.7 3.7 3.7 4.4 4.4 4.4 4.4 5.4 5.4 5.4
Thousand pieces of weight (steel)≈kg 11.3 14.7 17.2 18.3 32.3 43.7 42.3 40.9 53.6 77.4 75.3 94.3 92.1 136 133 130
Specification Φ17 Φ19 Φ21 Φ23 Φ25 Φ27 Φ28 Φ29 Φ31 Φ33 Φ34 Φ36 Φ37 Φ39 Φ40 Φ41
M Corresponding bolt specification M16 M18 M20 M22 M24 M26 M27 M28 M30 M32 M33 M35 M36 M38 M39 M40
d Min = Nominal 17 19 21 23 25 27 28 29 31 33 34 36 37 39 40 41
Max 17.27 19.33 21.33 23.33 25.33 27.33 28.33 29.33 31.39 33.62 34.62 36.62 37.62 39.62 40.62 41.62
dc Max = Nominal 30 34 37 39 44 50 50 50 56 60 60 66 66 72 72 72
Min 29.48 33.38 36.38 38.38 43.38 49.38 49.38 49.38 55.26 58.8 58.8 64.8 64.8 70.8 70.8 70.8
h Nominal 3 3 3 3 4 4 4 4 4 5 5 5 5 6 6 6
Max 3.3 3.3 3.3 3.3 4.3 4.3 4.3 4.3 4.3 5.6 5.6 5.6 5.6 6.6 6.6 6.6
Min 2.7 2.7 2.7 2.7 3.7 3.7 3.7 3.7 3.7 4.4 4.4 4.4 4.4 5.4 5.4 5.4
Thousand pieces of weight (steel)≈kg 11.3 14.7 17.2 18.3 32.3 43.7 42.3 40.9 53.6 77.4 75.3 94.3 92.1 136 133 130
Specification Φ43 Φ46 Φ50 Φ52 Φ54 Φ57 Φ58 Φ60 Φ62 Φ66 Φ70 Φ74 Φ78 Φ82 Φ87 Φ93
M Corresponding bolt specification M42 Φ46 M48 M50 M52 M55 M56 M58 M60 M64 M68 M72 M76 M80 M85 M90
d Min = Nominal 43 46 50 52 54 57 58 60 62 66 70 74 78 82 87 93
Max 43.62 46.62 50.62 52.74 54.74 57.74 58.74 60.74 62.74 66.74 70.74 74.74 78.74 82.87 87.87 93.87
dc Max = Nominal 78 85 92 92 98 105 105 110 110 115 120 125 135 140 145 160
Min 76.8 83.6 90.6 90.6 96.6 103.6 103.6 108.6 108.6 113.6 118.6 123.4 133.4 138.4 143.4 158.4
h Nominal 7 7 8 8 8 9 9 9 9 9 10 10 10 12 12 12
Max 8 8 9 9 9 10 10 10 10 10 11 11 11 13.2 13.2 13.2
Min 6 6 7 7 7 8 8 8 8 8 9 9 9 10.8 10.8 10.8
Thousand pieces of weight (steel)≈kg 183 220 294 284 330 431 425 472 458 492 586 626 749 953 996 1250
Specification Φ98 Φ104 Φ109 Φ114 Φ119 Φ124 Φ129 Φ134 Φ139 Φ144 Φ149 Φ155 Φ165
M Corresponding bolt specification M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M160
d Min = Nominal 98 104 109 114 119 124 129 134 139 144 149 155 165
Max 98.87 104.87 109.87 114.87 119.87 125 130 135 140 145 150 156 166
dc Max = Nominal 165 175 180 185 200 210 220 220 230 240 250 250 250
Min 163.4 173.4 178.4 183.15 198.15* 208.15 218.15 218.15 228.15 238.15 248.15 248.15 248.15
h Nominal 12 14 14 14 14 16 16 16 16 18 18 18 18
Max 13.2 15.2 15.2 15.2 15.2 17.2 17.2 17.2 17.2 19.2 19.2 19.2 19.2
Min 10.8 12.8 12.8 12.8 12.8 14.8 14.8 14.8 14.8 16.8 16.8 16.8 16.8
Thousand pieces of weight (steel)≈kg 1300 1710 1770 1830 2230 2830 3130 3000 3310 4090 4470 4270 3910



Material


304 Chemical Composition(%)
Grade C≤ Mn≤ Si≤ S≤ P≤ Cr Ni N≤

0.08 2 0.75 0.03 0.045 18.0-20.0 8.0-10.5 0.1
304 Mechanical property
σb≥ σ0.2≥ δ5 (%)≥ Hardness(HB)(kgf/mm2)]
520(Mpa) 205(Mpa) 40% ≤187 HRB≤90 HV ≤200
316 Chemical Composition(%)
Grade C≤ Mn≤ Si≤ S≤ P≤ Cr Ni Cu MO N

0.017 0.98 0.25 0.0016 0.0414 16.23 10.08 0.32 2.06 0.037
316 Mechanical property
σb≥ σ0.2≥ δ5 (%)≥ Hardness(HB)(kgf/mm2)]
520(Mpa) 205(Mpa) 40% ≤187 HRB≤90 HV ≤200
