din933
GS
GSHB001

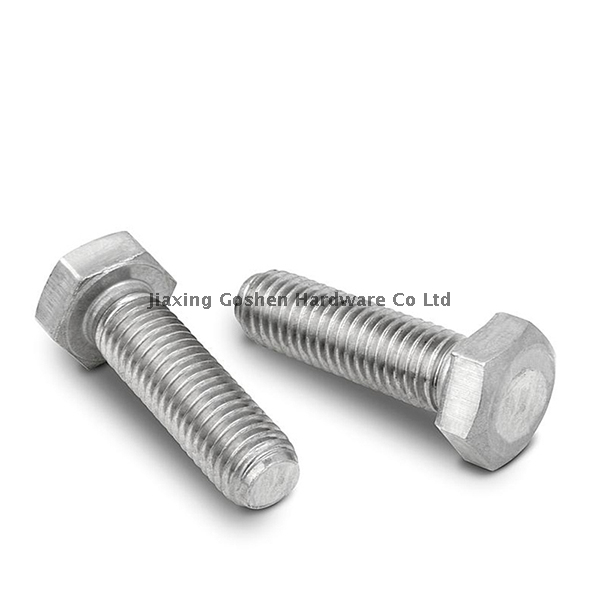

Goshen's hexagonal bolts are made of 304 ，316, 316l stainless steel, which has a bright color, less corrosion and a lot of size.
Test items | Test standards | Requirement | Test results | |||||||
Tensile Strength(N/mm²) | ISO 3506-1:2009 | 700Min | 753 | |||||||
Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo |
304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | - |
316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 |
316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 |

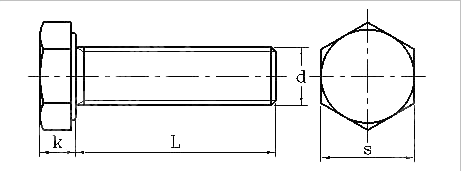

d | p | k | s | |||||
| A | B | max | min | |||||
| max | min | max | min | A | B | |||
| M1.6 | 0.35 | 1.22 | 0.98 | / | / | 3.2 | 3.02 | / |
| M2 | 0.4 | 1.52 | 1.28 | / | / | 4 | 3.82 | / |
| M2.5 | 0.45 | 1.82 | 1.58 | / | / | 5 | 4.82 | / |
| M3 | 0.5 | 2.12 | 1.88 | / | / | 5.5 | 5.32 | / |
| M3.5 | 0.6 | 2.52 | 2.28 | / | / | 6 | 5.82 | / |
| M4 | 0.7 | 2.92 | 2.68 | 3 | 2.8 | 7 | 6.78 | 6.64 |
| M5 | 0.8 | 3.65 | 3.35 | 3.74 | 3.26 | 8 | 7.78 | 7.64 |
| …… | ||||||||
Standard export packing or According to customer's requirement
A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.
A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.
