Hex socket cap screws dimensions

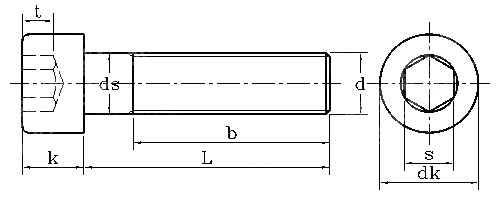

Hex socket cap screws dimensions ANSI/ASME B 18.3-2003

ASME B 18

d ds dk k s t
max min max min max min
#0 0.0600 0.0568 0.096 0.091 0.060 0.057 0.050 0.025
#1 0.7300 0.0695 0.118 0.112 0.073 0.070 0.062 0.031
#2 0.0860 0.8220 0.140 0.134 0.086 0.083 0.078 0.038
#3 0.0990 0.9490 0.161 0.154 0.099 0.095 0.078 0.044
#4 0.1120 0.1075 0.183 0.176 0.112 0.108 0.094 0.051
#5 0.1250 0.1202 0.205 0.198 0.125 0.121 0.094 0.057
#6 0.1380 0.1329 0.226 0.218 0.138 0.134 0.109 0.064
#8 0.1640 0.1585 0.270 0.262 0.164 0.159 0.141 0.077
#10 0.1900 0.1840 0.312 0.303 0.190 0.185 0.156 0.090
1/4 0.2500 0.2435 0.375 0.365 0.250 0.244 0.188 0.120
5/16 0.3125 0.3053 0.469 0.457 0.312 0.306 0.250 0.151
3/8 0.3750 0.3678 0.562 0.550 0.375 0.368 0.312 0.182
7/16 0.4375 0.4294 0.656 0.642 0.438 0.430 0.375 0.213
1/2 0.5000 0.4919 0.750 0.735 0.500 0.492 0.375 0.245
5/8 0.6250 0.6163 0.938 0.921 0.625 0.616 0.500 0.307
3/4 0.7500 0.7406 1.125 1.107 0.750 0.740 0.625 0.370
7/8 0.8750 0.8647 1.312 1.293 0.875 0.864 0.750 0.432
1 1.0000 0.9886 1.500 1.479 1.000 0.988 0.750 0.495
1-1/8 1.1250 1.1086 1.688 1.665 1.125 1.111 0.875 0.557
1-1/4 1.2500 1.2336 1.875 1.852 1.375 1.236 0.875 0.620
1-3/8 1.3750 1.3568 2.062 2.038 1.500 1.360 1.000 0.682
1-1/2 1.5000 1.4818 2.250 2.224 1.750 1.485 1.000 0.745
1-3/4 1.7500 1.7295 2.625 2.579 2.000 1.734 1.250 0.870
2 2.0000 1.9780 3.000 2.970 2.250 1.983 1.500 0.995
2-1/4 2.2500 2.2280 3.375 3.344 2.500 2.232 1.750 1.120
2-1/2 2.5000 2.4762 3.750 3.717 2.750 2.481 1.750 1.245
2-3/4 2.7500 2.7262 4.125 4.090 3.000 2.730 2.000 1.370
3 3.0000 2.9762 4.500 4.464 3.125 2.979 2.250 1.495
3-1/4 3.2500 3.2262 4.875 4.837 3.250 3.228 2.250 1.620
3-1/2 3.5000 3.4762 5.250 5.211 3.500 3.478 2.750 1.745
3-3/4 3.7500 3.7262 5.625 5.584 3.750 3.727 2.750 1.870
4 4.0000 3.9762 6.000 5.958 4.000 3.976 3.000 1.995
