DIN985
GS
GSLN001

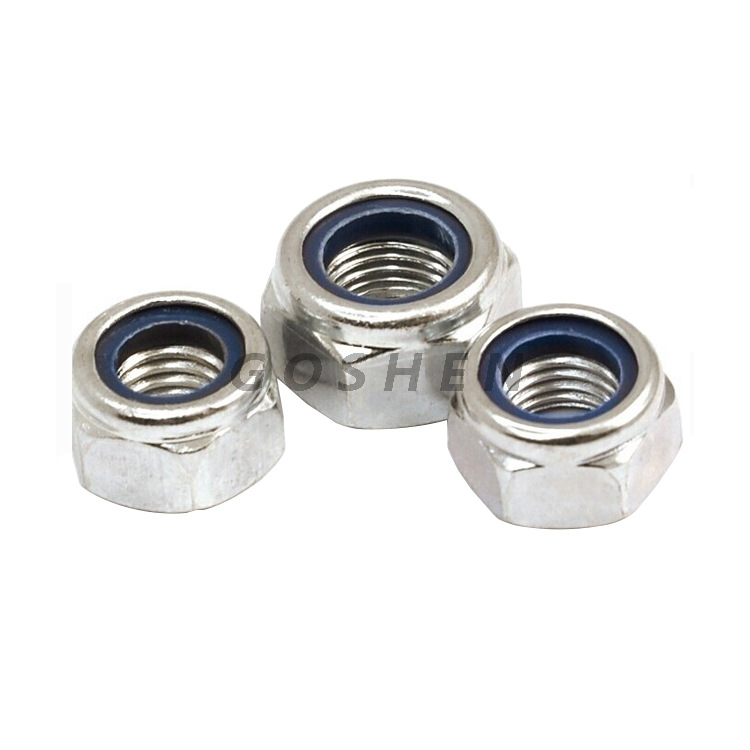

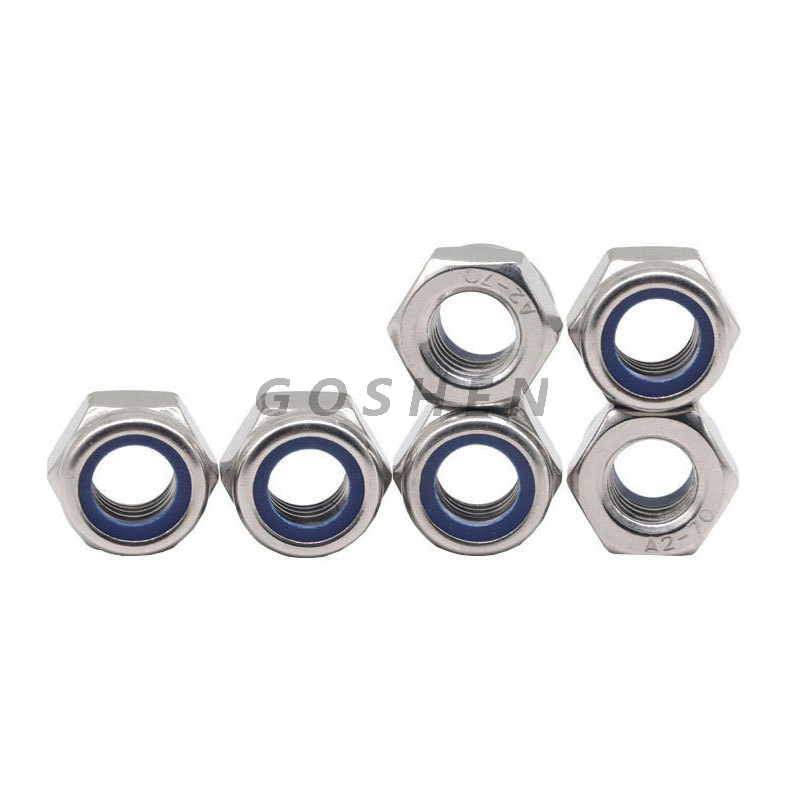

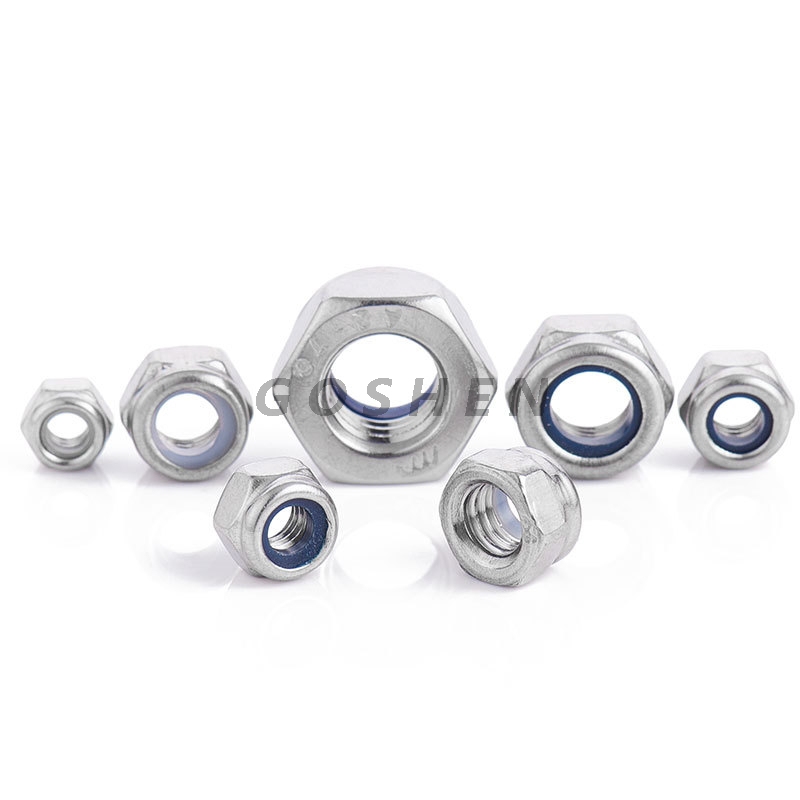

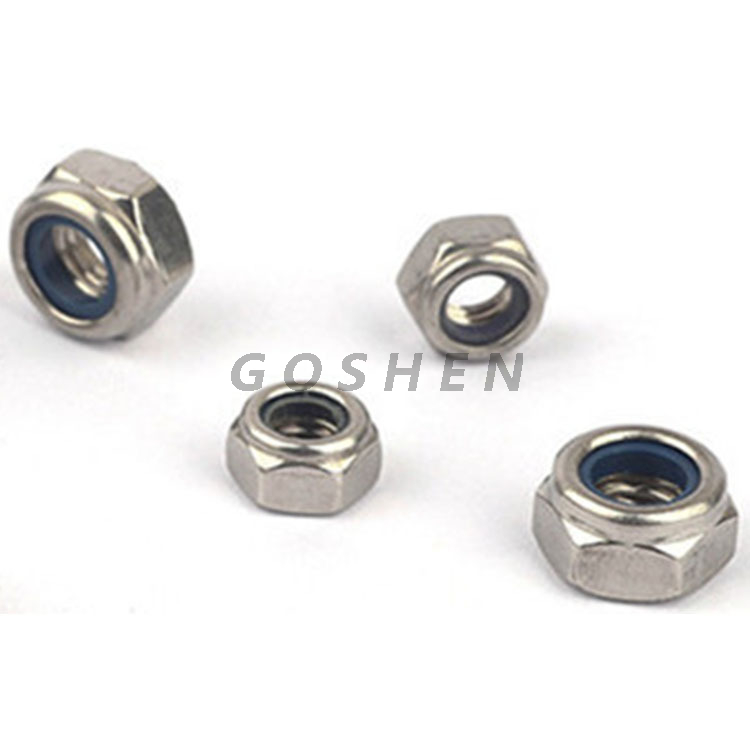

Goshen's Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert are made of 304/316 stainless steel, which has a bright color, less corrosion and a lot of size.

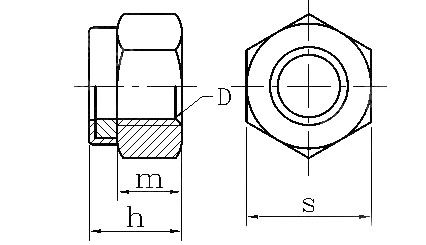

| D | P | h | s | m | ||
| max | min | max | min | |||
| M5 | 0.8 | 6.3 | 6 | 8 | 4.4 | 4.4 |
| M6 | 1 | 8 | 7.7 | 10 | 4.9 | 4.9 |
| M7 | 1 | 8.5 | 8.2 | 11 | 6.14 | 6.14 |
| M8 | 1/1.25 | 9.14 | 9.14 | 13 | 6.44 | 6.44 |
| M10 | 1/1.25/1.5 | 11.14 | 11.14 | 17 | 8.04 | 8.04 |
| M12 | 1.25/1.5/1.75 | 13.64 | 13.64 | 19 | 10.37 | 10.37 |
| M14 | 1.5/2 | 15.3 | 15.3 | 22 | 12.1 | 12.1 |
| M16 | 1.5/2 | 17.3 | 17.3 | 24 | 14.1 | 14.1 |
| M18 | 1.5/2/2.5 | 19.16 | 19.16 | 27 | 15.1 | 15.1 |
| M20 | 1.5/2/2.5 | 20.7 | 20.7 | 30 | 16.9 | 16.9 |
| M22 | 1.5/2/2.5 | 23.7 | 23.7 | 32 | 18.1 | 18.1 |
| M24 | 2/3 | 26.7 | 26.7 | 35 | 20.2 | 20.2 |
Bulk in master cartons, then on pallets, or according to customers' requirement.
A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.
A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.
Goshen's Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert are made of 304/316 stainless steel, which has a bright color, less corrosion and a lot of size.
| D | P | h | s | m | ||
| max | min | max | min | |||
| M5 | 0.8 | 6.3 | 6 | 8 | 4.4 | 4.4 |
| M6 | 1 | 8 | 7.7 | 10 | 4.9 | 4.9 |
| M7 | 1 | 8.5 | 8.2 | 11 | 6.14 | 6.14 |
| M8 | 1/1.25 | 9.14 | 9.14 | 13 | 6.44 | 6.44 |
| M10 | 1/1.25/1.5 | 11.14 | 11.14 | 17 | 8.04 | 8.04 |
| M12 | 1.25/1.5/1.75 | 13.64 | 13.64 | 19 | 10.37 | 10.37 |
| M14 | 1.5/2 | 15.3 | 15.3 | 22 | 12.1 | 12.1 |
| M16 | 1.5/2 | 17.3 | 17.3 | 24 | 14.1 | 14.1 |
| M18 | 1.5/2/2.5 | 19.16 | 19.16 | 27 | 15.1 | 15.1 |
| M20 | 1.5/2/2.5 | 20.7 | 20.7 | 30 | 16.9 | 16.9 |
| M22 | 1.5/2/2.5 | 23.7 | 23.7 | 32 | 18.1 | 18.1 |
| M24 | 2/3 | 26.7 | 26.7 | 35 | 20.2 | 20.2 |
Bulk in master cartons, then on pallets, or according to customers' requirement.
A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.
A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.
