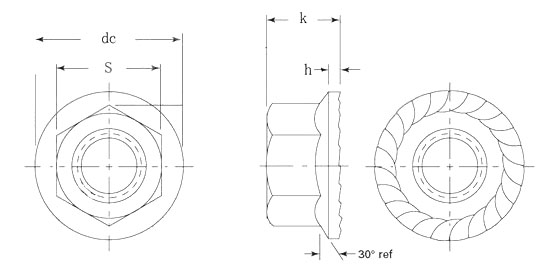

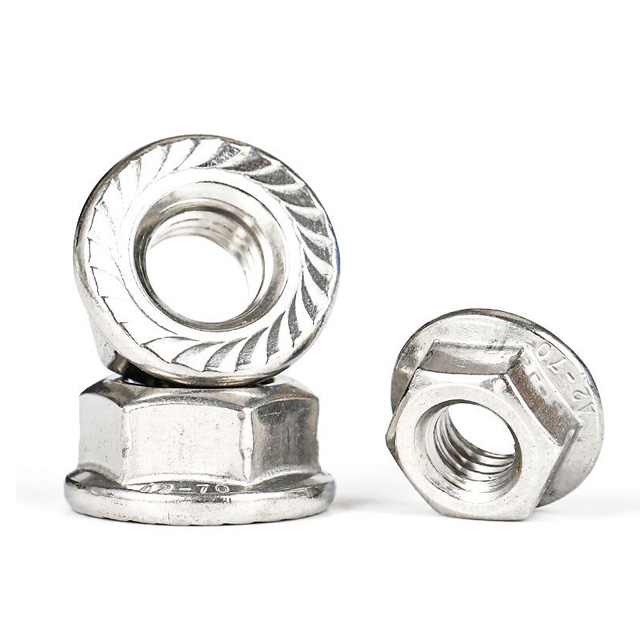

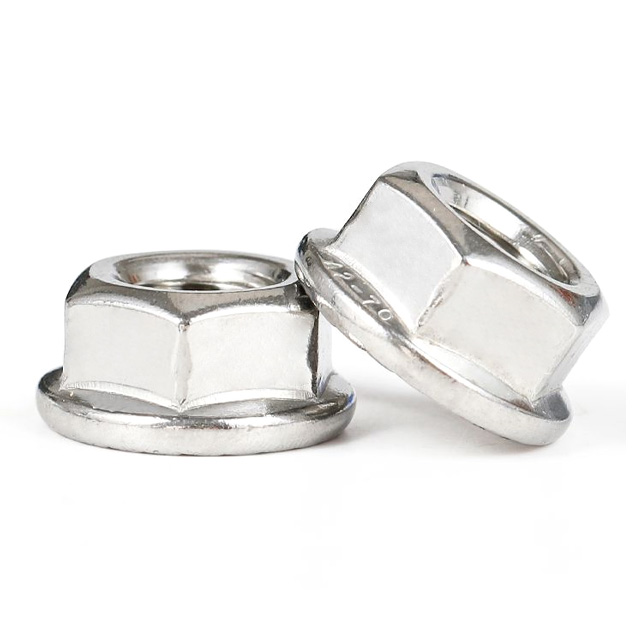

ANSI/ASME B 18.16.4
GS
GSFN002

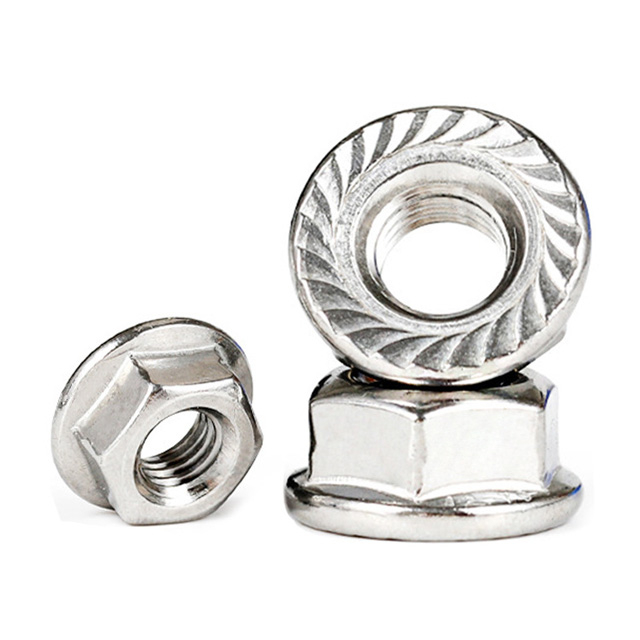

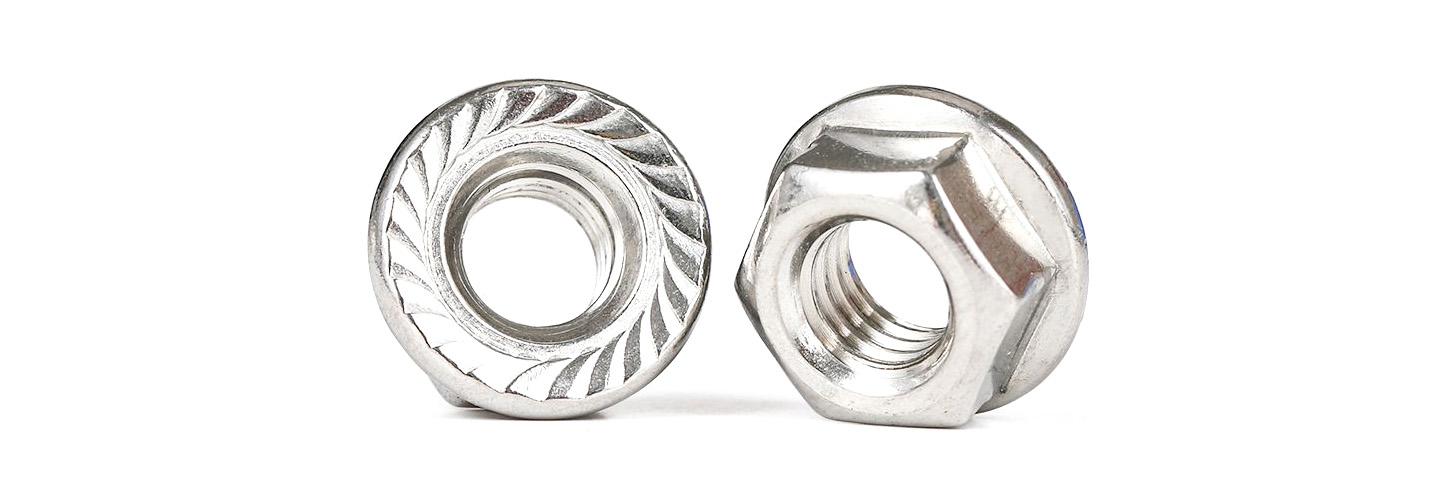

Goshen's flange head lock nuts fastenal are made of 304/316 stainless steel, which has a bright color, less corrosion and a lot of size.
| Nominal diameter | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | ||
| d | |||||||||
| d | 0.25 | 0.3125 | 0.375 | 0.4375 | 0.5 | 0.5625 | 0.625 | ||
| PP | UNC | 20 | 18 | 16 | 14 | 13 | 12 | 11 | |
| UNF | 28 | 24 | 24 | 20 | 20 | 18 | 18 | ||
| s | Max | 0.438 | 0.5 | 0.562 | 0.688 | 0.75 | 0.875 | 0.938 | |
| Min | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | ||
| e | Max | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | |
| Min | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | ||
| dc | Max | 0.728 | 0.82 | 0.915 | 1.131 | 1.205 | 1.3 | 1.36 | |
| Min | 0.7 | 0.79 | 0.885 | 1.1 | 1.175 | 1.26 | 1.28 | ||
| k | Max | 0.312 | 0.375 | 0.406 | 0.468 | 0.515 | 0.578 | 0.64 | |
| Min | 0.281 | 0.343 | 0.39 | 0.437 | 0.485 | 0.546 | 0.6 | ||
| h | Min | 0.04 | 0.04 | 0.04 | 0.04 | 0.06 | 0.06 | 0.06 | |
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
| 316 Chemical Composition(%) | ||||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
Bulk in master cartons, then on pallets, or according to customers' requirement.
A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.
A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.
Goshen's flange head lock nuts fastenal are made of 304/316 stainless steel, which has a bright color, less corrosion and a lot of size.
| Nominal diameter | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | ||
| d | |||||||||
| d | 0.25 | 0.3125 | 0.375 | 0.4375 | 0.5 | 0.5625 | 0.625 | ||
| PP | UNC | 20 | 18 | 16 | 14 | 13 | 12 | 11 | |
| UNF | 28 | 24 | 24 | 20 | 20 | 18 | 18 | ||
| s | Max | 0.438 | 0.5 | 0.562 | 0.688 | 0.75 | 0.875 | 0.938 | |
| Min | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | ||
| e | Max | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | |
| Min | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | ||
| dc | Max | 0.728 | 0.82 | 0.915 | 1.131 | 1.205 | 1.3 | 1.36 | |
| Min | 0.7 | 0.79 | 0.885 | 1.1 | 1.175 | 1.26 | 1.28 | ||
| k | Max | 0.312 | 0.375 | 0.406 | 0.468 | 0.515 | 0.578 | 0.64 | |
| Min | 0.281 | 0.343 | 0.39 | 0.437 | 0.485 | 0.546 | 0.6 | ||
| h | Min | 0.04 | 0.04 | 0.04 | 0.04 | 0.06 | 0.06 | 0.06 | |
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
| 316 Chemical Composition(%) | ||||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
Bulk in master cartons, then on pallets, or according to customers' requirement.
A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.
A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.
