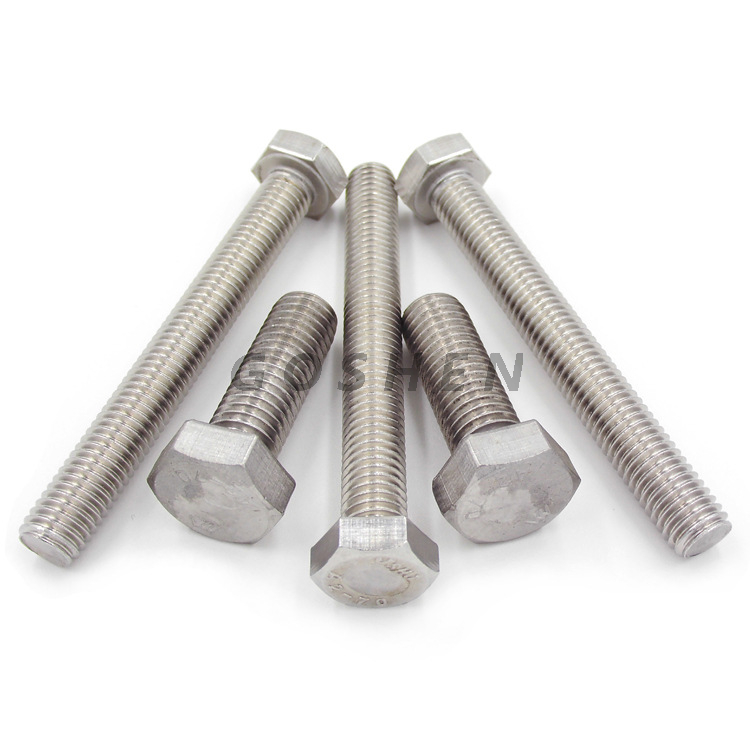

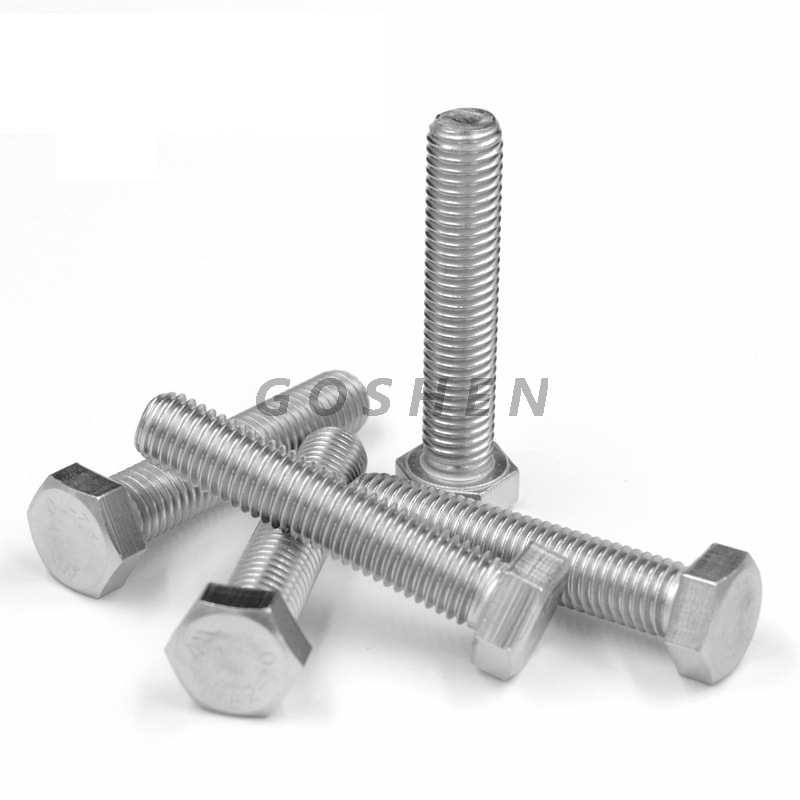

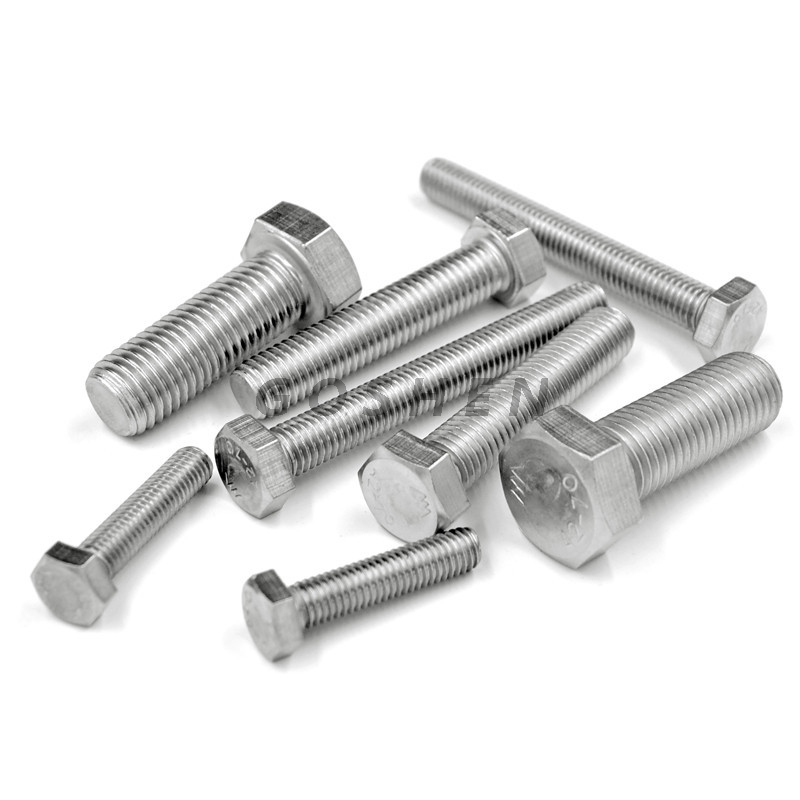

A194 -8M Full Thread Stainless Steel M10 DIN ISO 4014 - 2011 Hex Bolts

Availability:

  • M10

  • Goshen

NPFNHHADPDNPYL3_T4TL

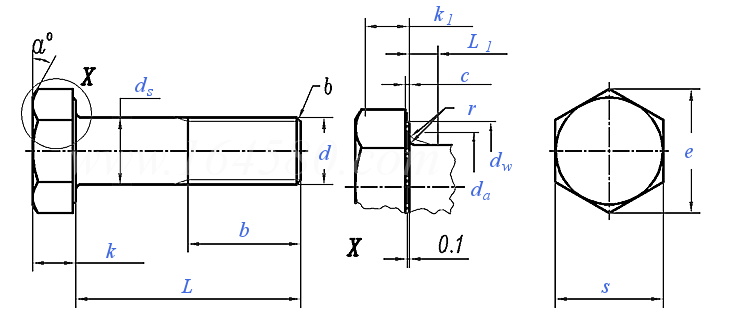

Thread  M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
d














P Pitch
0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
b L≤125
9 10 11 12 13 14 16 18 22 26 30 34 38 42 46
125＜L≤200
15 16 17 18 19 20 22 24 28 32 36 40 44 48 52
L＞200
28 29 30 31 32 33 35 37 41 45 49 53 57 61 65
c Max Max
0.25 0.25 0.25 0.4 0.4 0.4 0.5 0.5 0.6 0.6 0.6 0.6 0.8 0.8 0.8
Min Min
0.1 0.1 0.1 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.2 0.2 0.2
da Max
2 2.6 3.1 3.6 4.1 4.7 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4
ds Max=公称
1.6 2 2.5 3 3.5 4 5 6 8 10 12 14 16 18 20
A Min 1.46 1.86 2.36 2.86 3.32 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67
B Min 1.35 1.75 2.25 2.75 3.2 3.7 4.7 5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48
dw A Min 2.27 3.07 4.07 4.57 5.07 5.88 6.88 8.88 11.63 14.63 16.63 19.64 22.49 25.34 28.19
B Min 2.3 2.95 3.95 4.45 4.95 5.74 6.74 8.74 11.47 14.47 16.47 19.15 22 24.85 27.7
e A Min 3.41 4.32 5.45 6.01 6.58 7.66 8.79 11.05 14.38 17.77 20.03 23.36 26.75 30.14 33.53
B Min 3.28 4.18 5.31 5.88 6.44 7.5 8.63 10.89 14.2 17.59 19.85 22.78 26.17 29.56 32.95
L1 Max
0.6 0.8 1 1 1 1.2 1.2 1.4 2 2 3 3 3 3 4
k 公称
1.1 1.4 1.7 2 2.4 2.8 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5
A Max 1.225 1.525 1.825 2.125 2.525 2.925 3.65 4.15 5.45 6.58 7.68 8.98 10.18 11.715 12.715
Min 0.975 1.275 1.575 1.875 2.275 2.675 3.35 3.85 5.15 6.22 7.32 8.62 9.82 11.285 12.285
B Max 1.3 1.6 1.9 2.2 2.6 3 3.74 4.24 5.54 6.69 7.79 9.09 10.29 11.85 12.85
Min 0.9 1.2 1.5 1.8 2.2 2.6 3.26 3.76 5.06 6.11 7.21 8.51 9.71 11.15 12.15
k1 A Min 0.68 0.89 1.1 1.31 1.59 1.87 2.35 2.7 3.61 4.35 5.12 6.03 6.87 7.9 8.6
B Min 0.63 0.84 1.05 1.26 1.54 1.82 2.28 2.63 3.54 4.28 5.05 5.96 6.8 7.81 8.51
r Min
0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.4 0.4 0.6 0.6 0.6 0.6 0.8
s Max=公称
3.2 4 5 5.5 6 7 8 10 13 16 18 21 24 27 30
A Min 3.02 3.82 4.82 5.32 5.82 6.78 7.78 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67
B Min 2.9 3.7 4.7 5.2 5.7 6.64 7.64 9.64 12.57 15.57 17.57 20.16 23.16 26.16 29.16


                                                  Mechanical Properties
 Test items  Test standards  Requirement Test results
Tensile Strength(N/mm²) ISO 3506-1:2009 700Min 753

                                                   Chemical Composition
Element C Si Mn P S Ni Cr Mo Cu N
Percent % 0.029 0.35 1.08 0.031 0.001 10.26 16.99 2.05 0.32 /
