ANSI/ASME B 18.2.4.6M Stainless Steel Metric Heavy Hex Nuts

Share to:

ANSI/ASME B 18.2.4.6M Stainless Steel Metric Heavy Hex Nuts

Material :SS304 SS316 SS2205
Size ；M5-M60
We have stock nut : M6, M8, M10, M12, M14, M16, M20

Availability:

Quantity:



Inquire Add to Basket

Model:
ANSI/ASME B 18.2.4.6M
Brand:
Goshen

Product Description

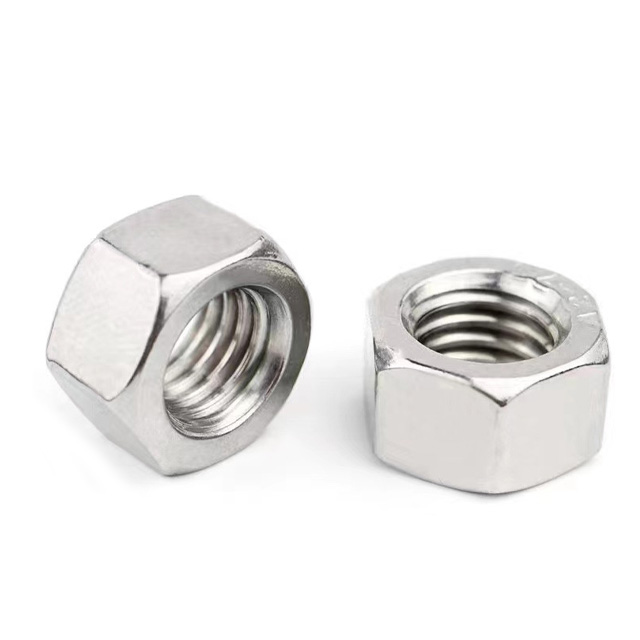

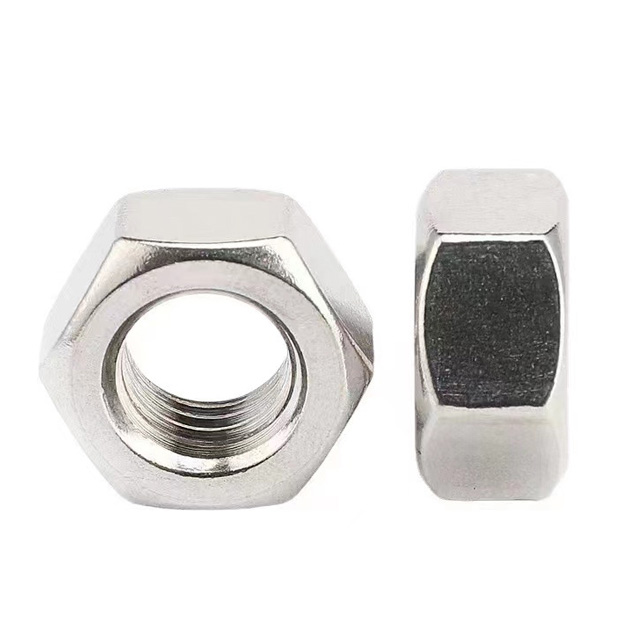

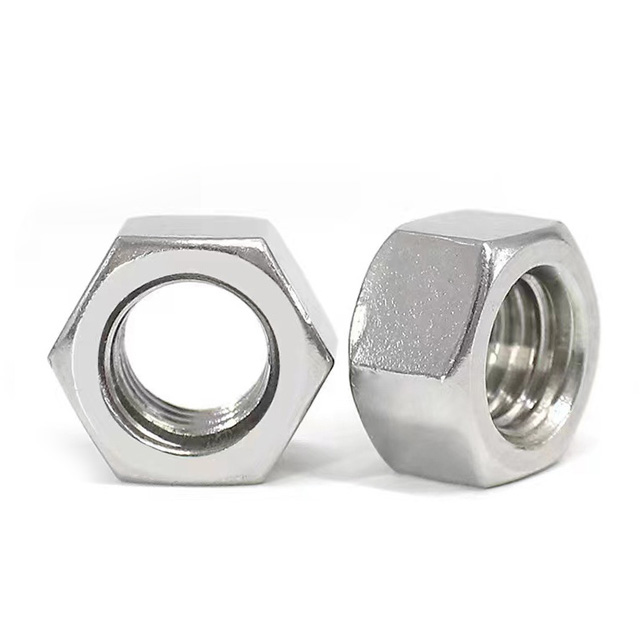

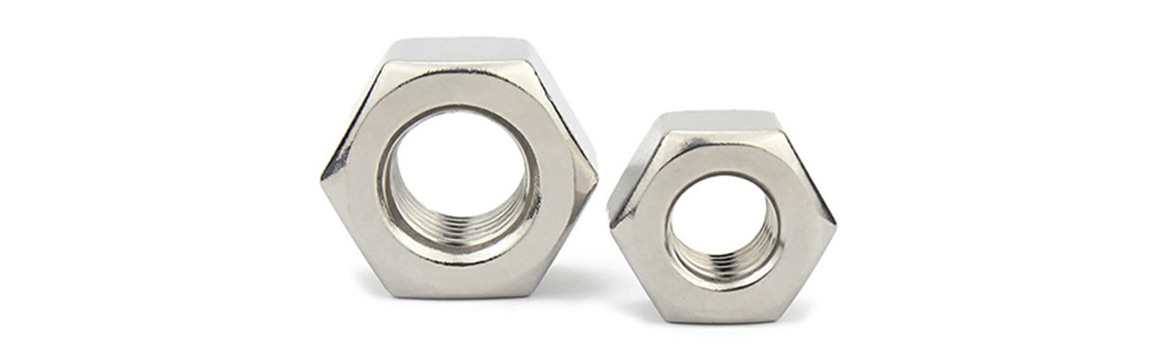

Stainless Steel Metric Heavy Hex Nuts

未标题-2

Assembling		ANSI/ASME B 18.2.4.6M Stainless Steel Metric Heavy Hex Nuts
Types of nut		ANSI/ASME B 18.2.4.6M
Material		stainless steel SS316
		Stainless steel ss304
Grade		A4-80
		A2-70
Finishing		washing
		silver

Size		M3-M64
		Or customized
Payment Term		T/T, paypal
Port		Shanghai
Packagement		carton+pallet

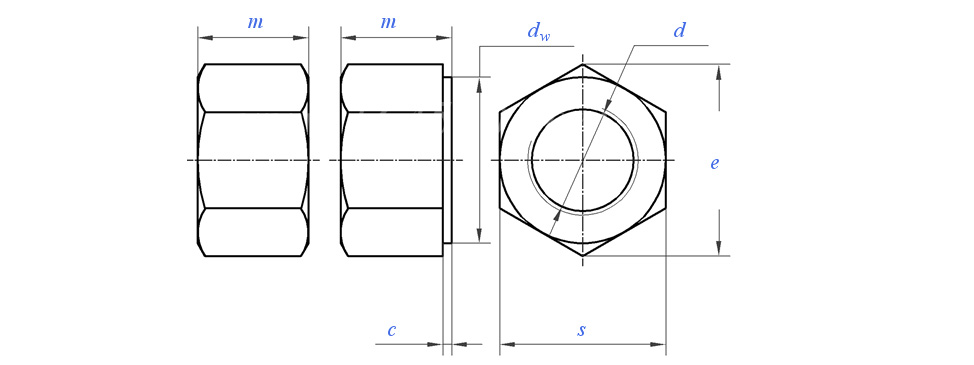

Specification

未标题-1

Thread size		M12	M14	M16	M20	M22	M24	M27	M30	M36
d
P	Screw pitch	1.75	2	2	2.5	2.5	3	3	3.5	4
s	Max	21	24	27	34	36	41	46	50	60
s	Min	20.16	23.16	26.16	33	35	40	45	49	58.8
e	Max	24.25	27.71	31.18	39.26	41.57	47.34	53.12	57.74	69.28
e	Min	22.78	26.17	29.56	37.29	39.55	45.2	50.85	55.37	66.44
m	Max	12.3	14.3	17.1	20.7	23.6	24.2	27.5	30.7	36.6
m	Min	11.9	13.6	16.4	19.4	22.3	22.9	26.3	29.1	35
c	Max	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
c	Min	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
dw	Min	19.2	22	24.9	31.4	33.3	38	42.8	45.6	55.9

Material

304 Chemical Composition(%)
Grade	C≤	Mn≤	Si≤	S≤	P≤	Cr	Ni	N≤
	0.08	2	0.75	0.03	0.045	18.0-20.0	8.0-10.5	0.1

304 Mechanical property
σb≥	σ0.2≥	δ5 (%)≥	Hardness(HB)(kgf/mm2)]
520(Mpa)	205(Mpa)	40%	≤187 HRB≤90 HV ≤200

316 Chemical Composition(%)
Grade	C≤	Mn≤	Si≤	S≤	P≤	Cr	Ni	Cu	MO	N
	0.017	0.98	0.25	0.0016	0.0414	16.23	10.08	0.32	2.06	0.037

316 Mechanical property
σb≥	σ0.2≥	δ5 (%)≥	Hardness(HB)(kgf/mm2)]
520(Mpa)	205(Mpa)	40%	≤187 HRB≤90 HV ≤200

Packaging & Shipping

Packing details, Bags+Catons+Pallets, or according to clients` requirement.

Why choose us?

1. Professional manufacturer for bolt, screw, nut, washer, threaded rod, anchor, PEM fasteners, cnc lathe machined parts, automatic lathe parts, milling machine parts etc.

2. We can provide best price and fastest response.

3. 100% inspection on critical dimensions with high accuracy +/-0.01-0.05mm according to requirement.

Company Information

Jiaxing Goshen Hardware CO.,LTD is Locates at Economic Development Area,Jiaxing City,Zhejiang Province,China.A leader in the fastener industry since 2012Established in 2012, Goshen offers a unique combination of highly knowledgeable sales staff, superior-quality products, and unsurpassed customer service, which can significantly improve the entire purchasing process for your company.

FAQ

1. What is your main products?

A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.

2. What is your delivery time?

A: It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.

3. What is your payment term?

A: Mostly we use 30% advance payment by T/T, 70% before shipment

For small amount order, we have paypal account, also the western union, MoneyGram is ok.

4. How is your quality? And what if we don't satisfied your quanlity?

A: We produce your order strictly by your request. If the quality was not acceptable, we will refund to you.
